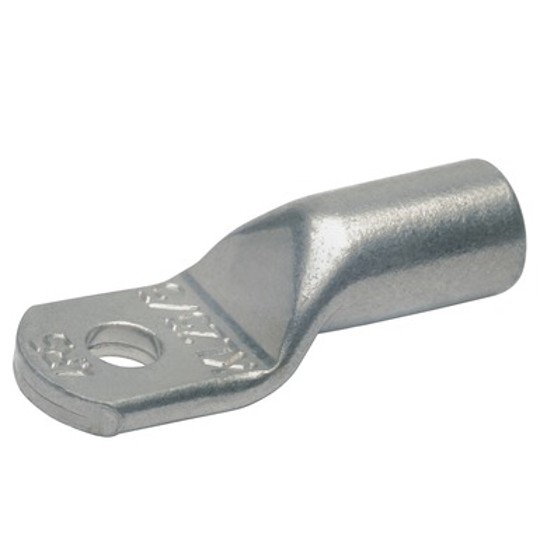

Tubular cable lugs, Cu, standard type, without inspection hole

Cable Gland
  • Approval of the tin-plated cable lugs for use with high-temperature cables 180° C (in acc. with IEC 61238-1-1): The cable lugs can be used with class 5 tin-plated conductors (fine-stranded)
  • For multi-stranded round conductors, e.g. to EN 60228 Cl. 2
  • For pre-rounded multi-stranded sector shaped conductors
  • Ideal cable lug for control cabinet construction
  • In combination with EKM 60 ID and EK 30 ID suitable for fine-stranded conductor


PART NO.CROSS-SECTION MM²CONN. BOLTS DIA.D1ABD2D4C1C2LWEIGHT/100 PCS. ~KGPU/PCS.
1R56M53,59105,36,56,507,5210,50100
1R66M63,59126,46,56,507,5210,47100
1R86M83,59158,46,510,0010,0230,54100
1R106M103,591710,56,512,0012,0250,59100
1R126M123,591913,06,513,0013,0280,63100
2R510M54,510125,37,06,507,5220,50100
2R610M64,510126,47,06,507,5220,49100
2R810M84,510158,47,010,0010,0250,58100
2R1010M104,5101710,57,012,0012,0270,62100
2R1210M124,5101913,07,013,0013,0290,64100
3R516M55,513125,58,55,506,5260,84100
3R616M65,513126,48,56,257,5270,86100
3R816M85,513158,38,58,509,5290,93100
3R1016M105,5131710,58,510,5011,5310,99100
3R1216M125,5131913,08,512,0013,0331,02100
4R525M57,015145,310,07,507,5301,2225
4R625M67,015145,310,07,507,5301,20100
4R825M87,015168,410,010,0010,0321,31100
4R1025M107,0151810,510,012,0012,0341,57100
4R1225M127,0151913,010,013,0013,0351,3925
4R1425M147,0152115,010,014,5014,5381,4925
5R635M68,517176,412,07,507,5321,85100
5R835M88,517178,412,010,0010,0342,00100
5R1035M108,5171910,512,012,0012,0372,13100
5R1235M128,5172113,012,013,0013,0382,12100
5R1435M148,5172115,012,014,5014,5402,1825
5R1635M168,5172617,012,016,0016,0422,2425
6R650M610,019206,414,010,0010,0373,0025
6R850M810,019208,414,010,0010,0372,9350
6R1050M1010,0192010,514,012,0012,0393,0850
6R1250M1210,0192313,014,013,0013,0433,2350
6R1450M1410,0192315,014,014,5014,5453,3225
6R1650M1610,0192817,014,016,0016,0463,3825
6R2050M2010,0193021,014,019,0019,0483,4625
7R670M612,021236,416,510,0010,0434,4925
7R870M812,021238,516,510,0010,0434,3850
7R1070M1012,0212310,516,512,0012,0444,5450
7R1270M1212,0212313,016,513,0013,0464,6350
7R1470M1412,0212315,016,514,5014,5484,7625
7R1670M1612,0212817,016,516,0016,0504,2425
7R2070M2012,0213021,016,519,0019,0535,0925
8R895M813,525268,418,012,0012,0485,4425
8R1095M1013,5252610,518,012,0012,0485,4050
8R1295M1213,5252613,018,013,0013,0495,5650
8R1495M1413,5252615,018,014,5014,5515,6225
8R1695M1613,5252817,018,016,0016,0545,8250
8R2095M2013,5253621,018,022,0022,0606,7125
9R8120M815,026288,419,514,0014,0516,7225
9R10120M1015,0262810,519,514,0014,0516,5750
9R12120M1215,0262813,019,514,0014,0516,3850
9R14120M1415,0262815,019,515,0015,0526,4525
9R16120M1615,0263017,019,516,0016,0546,5150
9R20120M2015,0263621,019,522,0022,0637,7425
10R10150M1016,5303110,521,014,0014,0567,6210
10R12150M1216,5303113,021,015,0015,0577,7325
10R14150M1416,5303115,021,015,0015,0577,6410
10R16150M1616,5303117,021,016,0016,0587,5310
10R20150M2016,5303621,021,022,0022,0668,8010
10R8150M816,530318,421,014,0014,0567,7810
11R10185M1019,0303510,524,018,0018,06511,7510
11R12185M1219,0303513,024,018,0018,06511,8210
11R14185M1419,0303515,024,018,0018,06511,3910
11R16185M1619,0303517,024,018,0018,06511,2425
11R20185M2019,0303921,024,022,0022,06912,0010
12R10240M1021,0353910,526,021,5019,07214,7210
12R12240M1221,0353913,026,021,5019,07214,5510
12R14240M1421,0353915,026,021,5019,07214,2410
12R16240M1621,0353917,026,021,5019,07214,0925
12R20240M2021,0353921,026,021,5019,07213,6010
13R12300M1223,5444313,029,524,0024,08723,335
13R14300M1423,5444315,029,524,0024,08723,145
13R16300M1623,5444317,029,524,0024,08722,745
13R20300M2023,5444321,029,524,0024,08722,195
14R12400M1227,0444913,034,024,0024,09032,415
14R14400M1427,0444915,034,024,0024,09032,245
14R16400M1627,0444917,034,024,0024,09031,985
14R20400M2027,0444921,034,024,0024,09031,415
