Is solar power DC or AC? Why is a specialized DC cable needed?
What kind of electricity does a solar energy system generate? The answer may be familiar to many, but the principles of electricity generation and the conversion process for practical use are not fully understood by everyone.

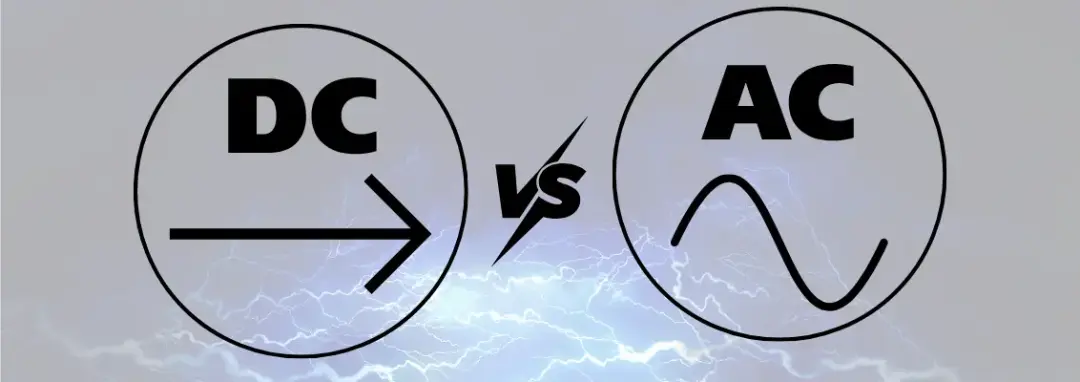

1. The difference between DC and AC current
To understand what kind of electricity a solar panel generates, it's first necessary to distinguish between the two types of current: DC and AC.
1.1. What is DC electricity?
DC (Direct Current) is a direct current in which electrons move in a fixed and constant direction over time. This type of current is typically generated from energy sources with a stable electron flow, such as batteries, solar panels, or conversion power supplies.
Direct current offers high efficiency for low-voltage and short-distance applications. Thanks to its consistency and stability, DC power is widely used in electronic devices such as smartphones and laptops, as well as electric vehicle (EV) systems, battery storage systems, and solar power. In some cases, many devices, even when plugged into an AC power source, still require an adapter or converter to transform AC power to DC before being powered.
1.2. What is AC electricity?
AC (Alternating Current) is an alternating current in which the direction of electron movement changes continuously in a cyclical manner. Unlike DC electricity, which flows in a fixed direction, AC electricity constantly reverses direction at a common frequency of 50Hz or 60Hz, corresponding to a reversal of direction 50 - 60 times per second.
AC electricity is currently the most widely used form of electrical power in residential, commercial, and industrial systems. A major advantage of alternating current is its ability to transmit electricity over long distances with high efficiency, thanks to the ease of increasing or decreasing voltage using transformers. Most household electrical appliances such as lights, fans, refrigerators, air conditioners, and power outlets use AC power from the national grid.
2. Does the solar power system generate AC or DC electricity?
Solar panels generate electricity based on the photovoltaic effect. When absorbing sunlight, the photovoltaic cells inside the panel excite electrons in the semiconductor material, thereby generating an electric current. This directed movement of electrons forms a direct current. This is also why electricity generated from solar panels is always DC, not AC.
The reason lies in the very physical structure of the solar photovoltaic cell. The semiconductor layers inside only allow electrons to move in one fixed direction and completely lack a mechanism for reversing the current like AC electricity. Therefore, the solar panel itself cannot directly generate alternating current.
However, most household electrical appliances and the national power grid currently use AC power. Therefore, in a solar power system, an inverter and DC cables are mandatory to convert DC power from the solar panels into AC power before use or grid connection.
3. The role of inverters in DC power and solar power systems
An inverter is not simply a converter but it's a crucial component responsible for a range of functions that determine the performance, safety, and lifespan of the system. Below are some of the key roles of inverters in solar power applications:
Energy conversion
The inverter's role is to convert the DC current generated by solar panels into AC current to power household electrical appliances and feed into the national power grid. This is the core function that enables the practical use of solar power.
System safety protection
The inverter incorporates multiple safety features such as arc flash protection, ground fault detection, and automatic shutdown in case of grid failure, contributing to increased safety for solar power systems and DC cables.
Grid synchronization
For grid-connected solar power systems, the inverter helps synchronize the voltage and frequency of the AC current with the national power grid, ensuring stable, continuous, and safe system operation.
Battery storage and bidirectional current management
In hybrid or energy storage systems, the inverter also plays a role in regulating the current flow between the solar panels, storage batteries, and the load, optimizing the use of solar power both day and night.
Performance monitoring and tracking
Modern inverters are capable of monitoring power output in real time, allowing users to easily track system performance, detect faults, and optimize operations.
Power optimization with MPPT technology
The inverter's built-in Maximum Power Point Tracking (MPPT) technology ensures the system always operates at its optimal power point, thereby maximizing the amount of electricity harvested from the solar panels under varying weather conditions.
>>> Useful for you: Understanding solar inverters: The complete A-to-Z guide

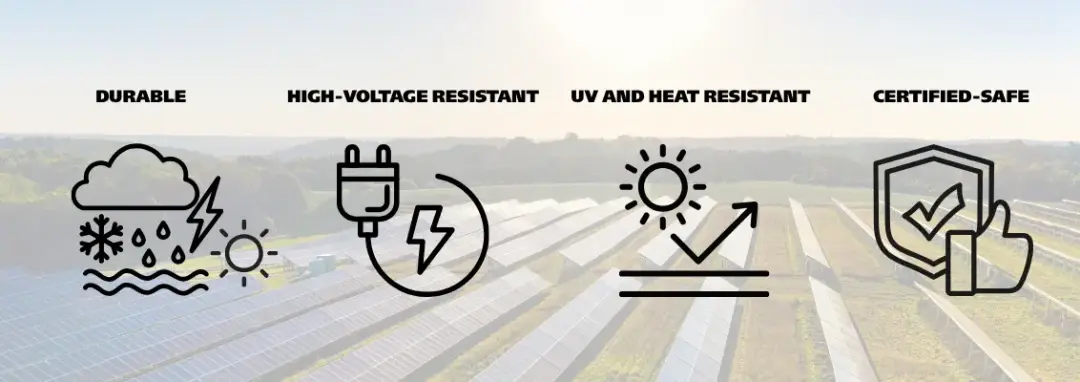

4. What's special about DC cables in a solar power system?
To function effectively in solar power farms, DC cables possess the following superior characteristics:
4.1. High durability in outdoor environments
DC solar power cables are designed to withstand harsh outdoor conditions. The cables typically have robust insulation, providing protection against moisture, abrasion, and environmental impacts such as rain, dust, or mechanical shock. This allows solar power systems to maintain stable performance and operate reliably for extended periods, even when installed in challenging environments.
4.2. High DC voltage withstand capability
Electrical systems typically generate DC current at high voltages, so solar power cables need to handle high loads and voltages to reduce the risk of overheating and energy loss, ensuring efficient system operation. Many DC cables currently available can operate at up to 1500V DC, suitable for both residential and commercial systems.
4.3. Excellent UV protection and heat resistance
Unlike conventional electrical cables, solar power cables must be directly exposed to sunlight for extended periods. Therefore, the cable sheath is designed to resist UV rays, withstand heat, and minimize cracking or aging due to temperature changes. Whether your system is installed in a hot, dry desert or a frigid mountain region, these DC cables maintain stable performance.
4.4. Compliance with safety standards
DC cables for solar power systems must comply with strict technical standards to ensure safe operation. Many types of cables have international certifications – such as UL 4703 and IEC 62930 – for fire resistance, halogen-free properties, and safety in electrical systems. By choosing certified cables, you protect your system from potential hazards such as fires or short circuits.
5. What are the differences between DC and AC cables for solar systems?
Besides the differences in current as analyzed in Part 1, DC and AC cables in electrical systems are also designed with specific technical characteristics to suit the operating conditions and usage requirements of each type of current. Some typical differences include:
| Feature | DC cables | AC cables |
| Structure | Simple (positive/negative poles) | Complex (3-phase, 4-5 wires) |
| Conductors | Typically high-conductivity copper | Copper or aluminum |
| Insulation | Moderate, UV/weather-resistant | Thicker, often cross-linked |
| Shielding | Often minimal or none | Required to reduce EMI |
| Electrical field strength | More evenly distributed | Concentrated near conductors |
| Distance | More efficient over shorter distances | Better for very long distances with transformers |
| Cost | ~1/3 cost of AC equivalent | ~3x higher |
6. HELU's DC and AC cables for the solar power industry

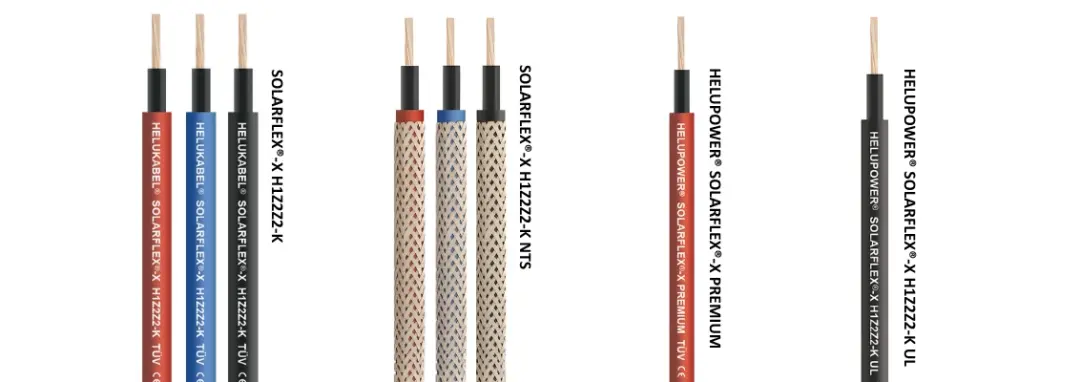

We HELU offer four types of SOLARFLEX® DC cables for solar power systems, each with its own unique characteristics:
SOLARFLEX®-X H1Z2Z2-K : A standard cable widely used in solar systems due to its stable operation and long-lasting durability.
SOLARFLEX®-X H1Z2Z2-K NTS : An upgraded version with V2A stainless steel, offering rodent resistance and enhanced cable protection in harsh environments.
HELUPOWER® SOLARFLEX®-X Premium : Distinguished by its superior water resistance and long lifespan, it is suitable for floating solar power applications or high-humidity environments.
HELUPOWER® SOLARFLEX®-X H1Z2Z2-K UL : This cable type is UL 4703 certified, meeting the technical requirements for projects targeting the export market, especially the US.

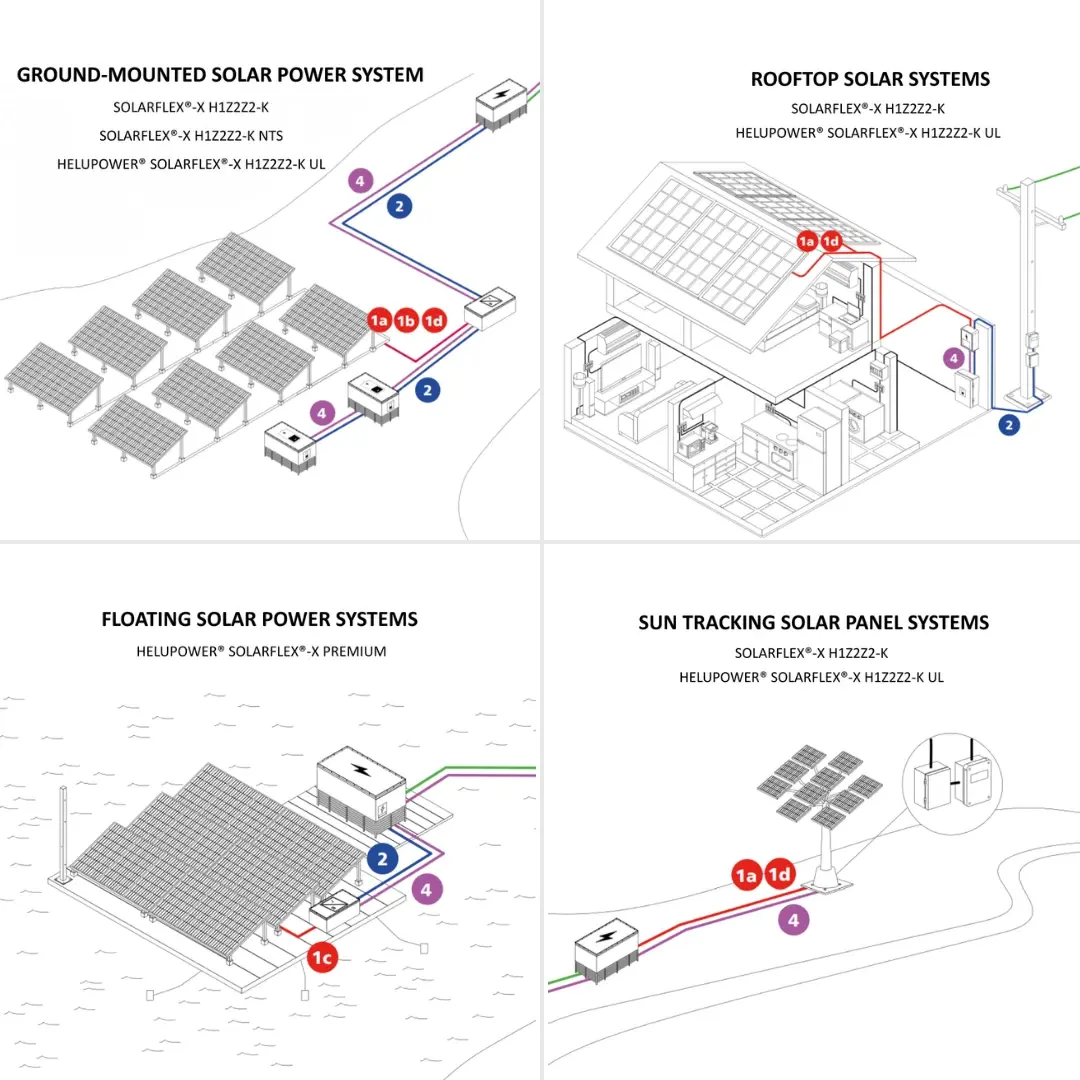

In addition to DC cables for solar power systems, HELU also offers a variety of AC cables for power transmission and distribution after the inverter, specifically:
FIND OUT MORE
If you are looking for high-quality DC and AC cables for your solar power system, we HELU Vietnam are ready to assist you with our catalog of internationally certified cables, meeting diverse needs from residential rooftops to large-scale projects. Contact our technical team today for advice on the right solution for your system!
