HELUKABEL cables for Earthing and EMC Applications

HELUKABEL has new cables and accessories for earthing and EMC applications for the automotive industry in its product range. Find out here.

Products for Earthing and EMC Applications
03/06/2019
HELUKABEL VIETNAM

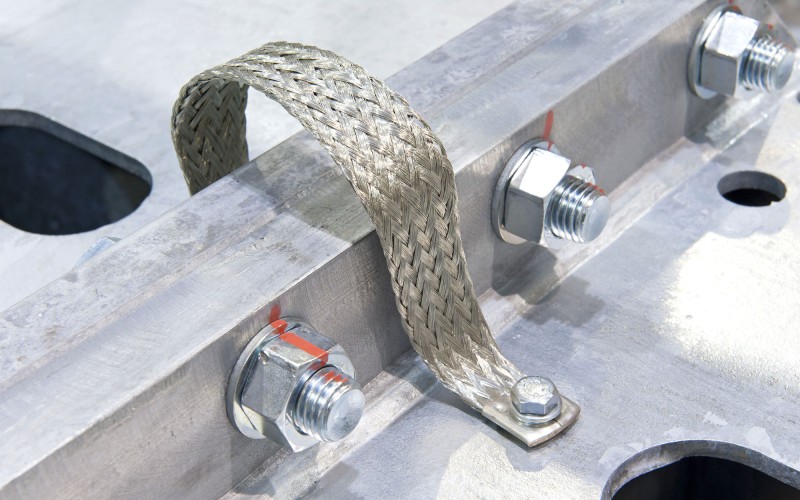

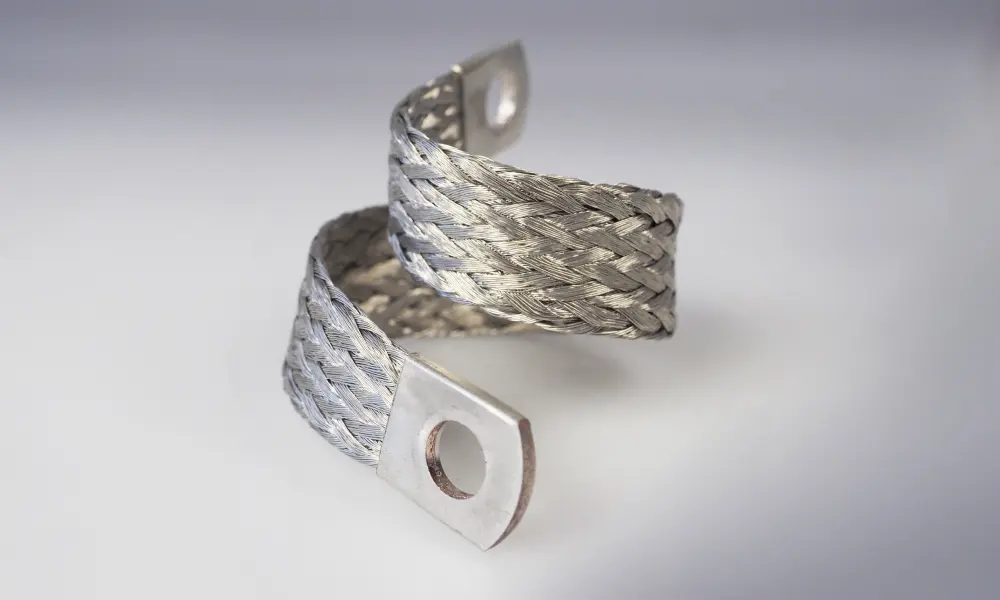

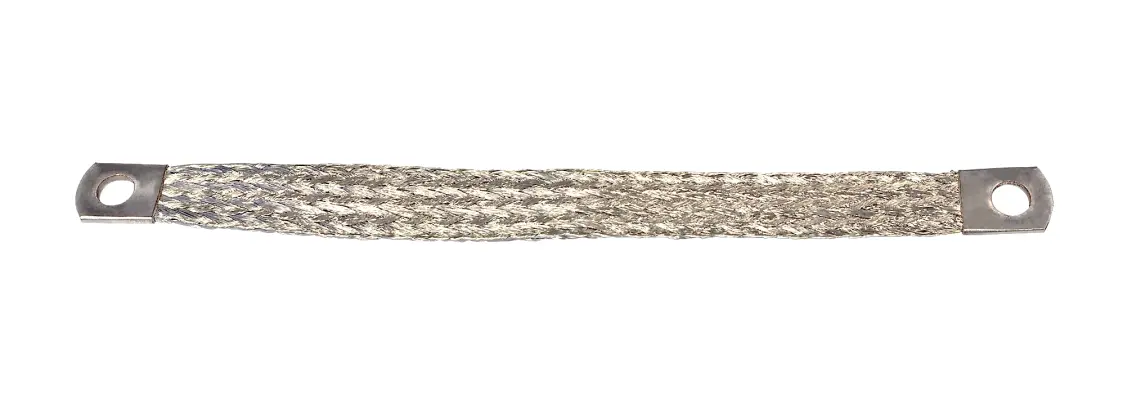

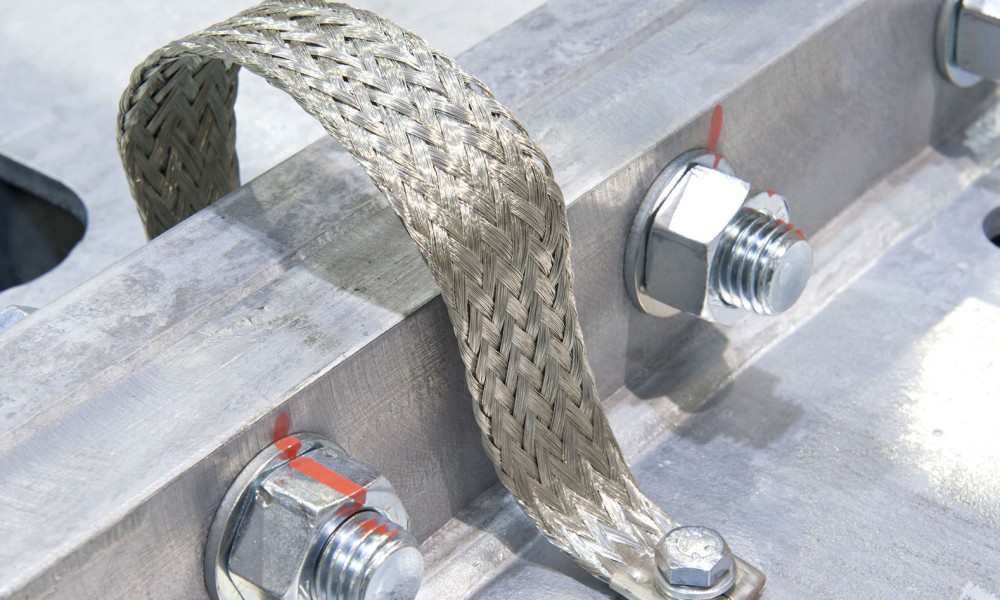

1. CU-Earthing Strap

  • For EMC applications (interference elimination)
  • Rounded contacts
Material:Technical data:
  • Tinned copper
  • Temperature range: -20°C / +125°C
  • Individual wire thickness: 0.2 mm
  • Contacts made of seemless pressed ferrules
Application areas:Note:
  • Automotive industry
  • Robotics
  • Control cabinet construction
  • Available in other lengths and sizes upon request

💡Are you interested in earthing cables? Check out What are earthing cables, applications, and classifications

Earthing Strap

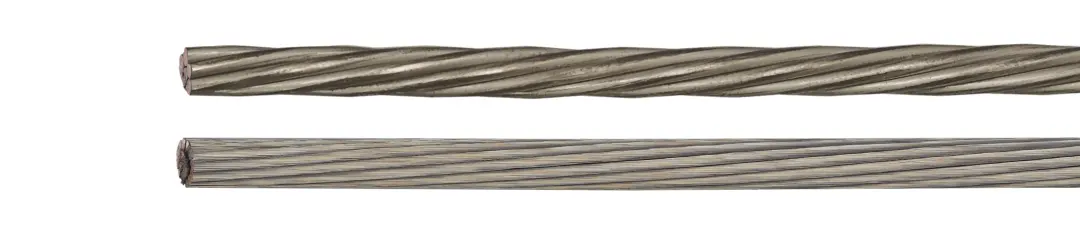

2. Stranded Copper Wire

Structure:Application areas:
  • Tinned copper conductor, acc. to DIN VDE 0295 class 2, multistranded
  • Tinned copper conductor, acc. to DIN VDE 0295 class 5, finely stranded
  • Minimum bending radius: fixed installation, 6x outer Ø
  • For earthing machines / equipment with corrosion protection
  • Protective equipotential bonding in CBN ring-conductor systems in the automotive industry, for example
  • CBN = common bonding network
  • Stranded construction improves mechanical properties: more flexible, consistent diameter, and compact structure
stranded copper wire

3. ADI Wire End Ferrules, insulated, DIN 46228, CSA /US

Properties:Material:
  • Prevents dismantled wires from fraying
  • Funnel-shaped plastic collar
  • Easier to slide onto the wires
  • Colour code acc. to DIN, ZF, and Telemecanique
  • Ferrules: copper, tinned surface
  • Insulating collar: polypropylene
Technical data:Note:
  • Temperature range: up to +105°C, short term: up to +120°C
  • Sizing by conductor cross-section according to DIN 46228: up to 50 mm² according to nominal size and DIN colour code - no standard over 50 mm²; Sizing according to specifications possible.

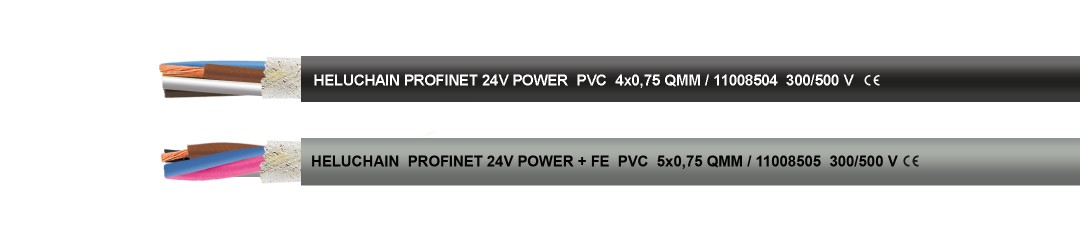

4. HELUCHAIN PROFINET 24V POWER PVC /+ FE PVC

Technical data:Properties:
  • PROFINET-conforming, highly flexible, PVC drag chain cable acc. to DIN EN 60445 (VDE 0197).
  • Temperature range: flexing 0°C to +90°, fixed installation -30°C to +90°C
  • Nominal voltage: U0/U: 300/500 V
  • Minimum bending radius: flexing 12x cable Ø, fixed installation 4x cable Ø
  • Drag chain compatible: max. travel distance 10 m / max. speed 3 m/s, max. acceleration 3m/s²/ max. cycles 2 million
  • Free from: silicone, cadmium, paint-wetting impairment substances
  • Resistant to: most oils
Application areas:In dry / damp rooms (not for outdoors) PROFINET-conforming, highly flexible, PVC drag chain cable
In the automotive industry for measurement and control systems with frequent lifting and bending stress. Machine and tool construction. Permanently moving machine parts

Discover Power Supply for Profinet Participants

Profinet cable
